Seam Wall Panels

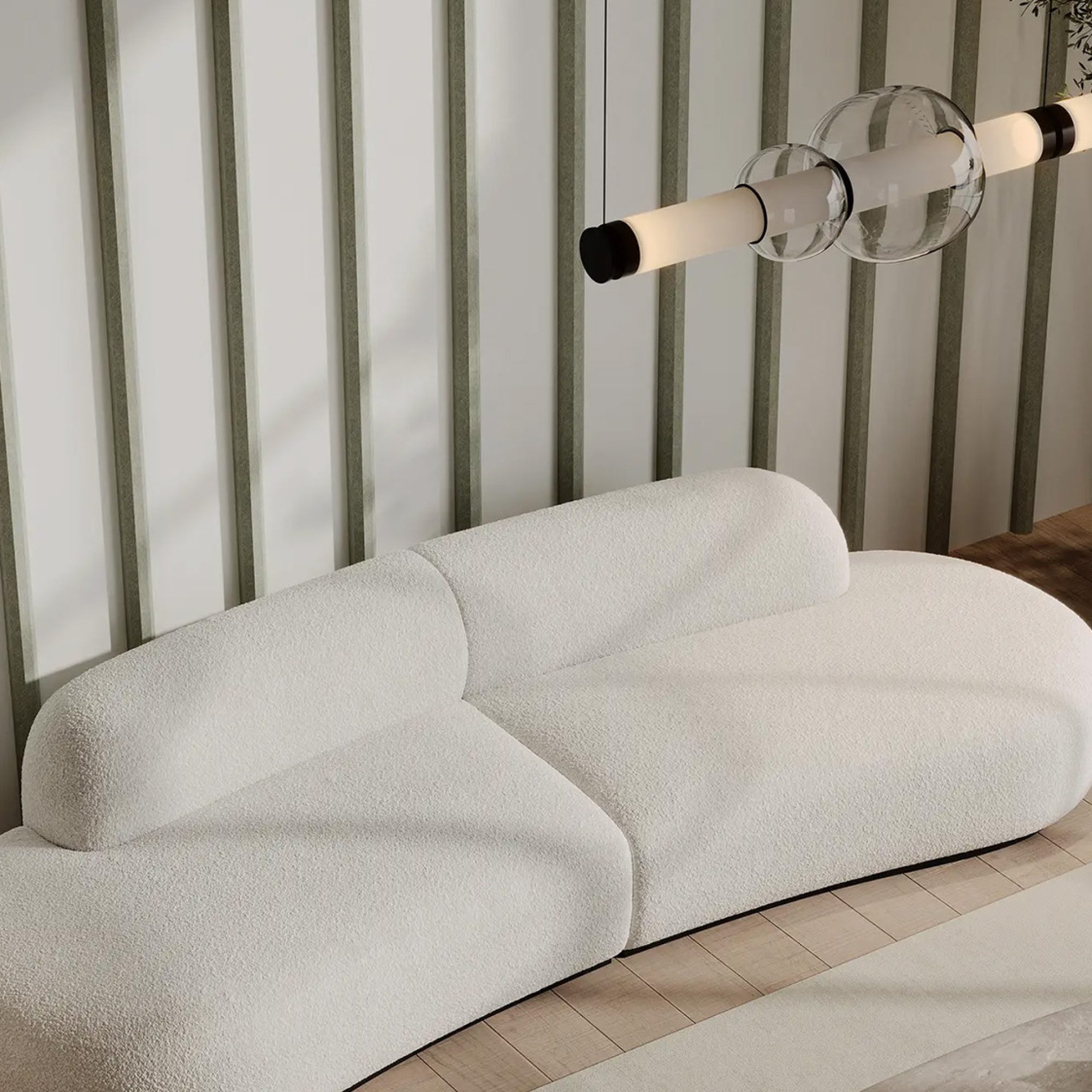

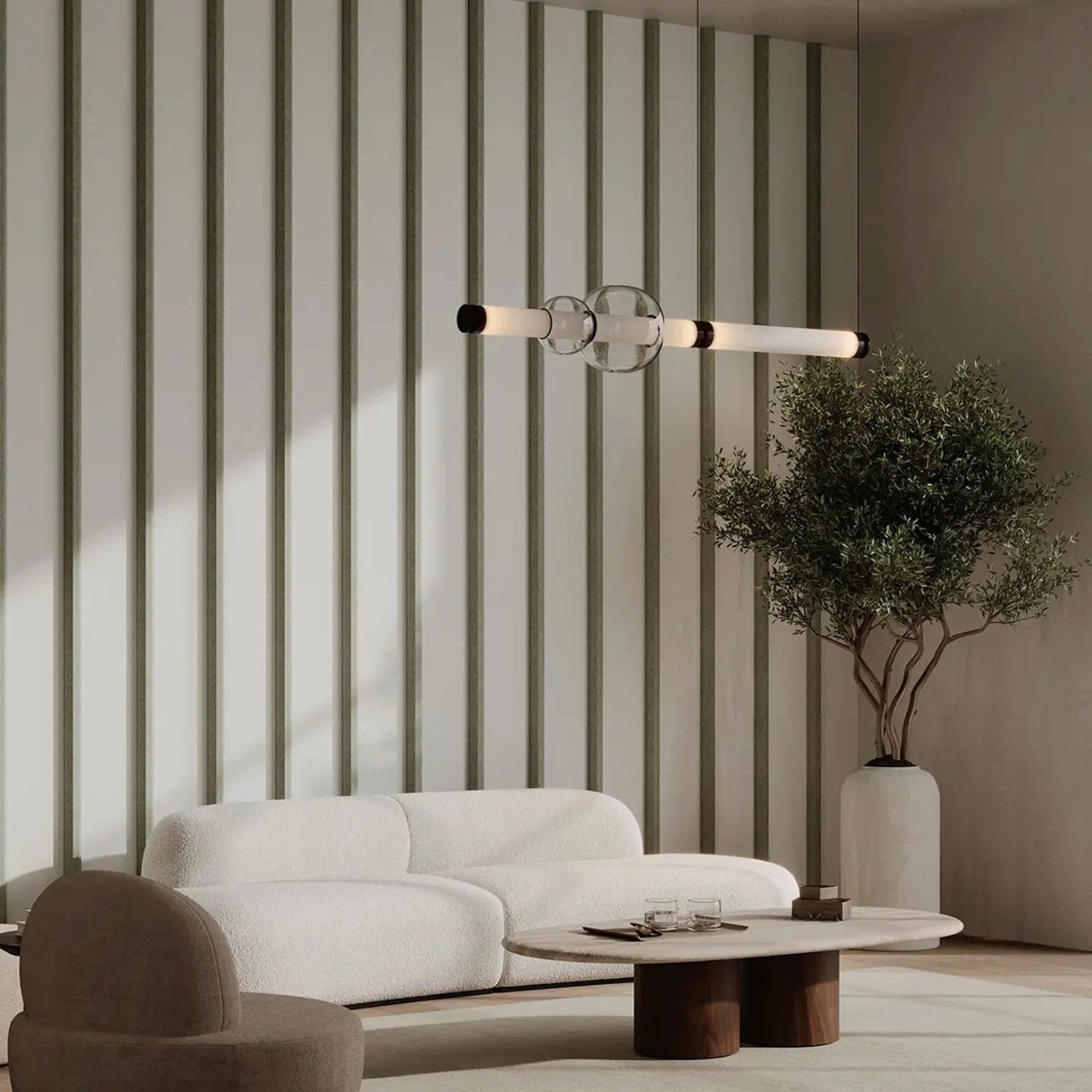

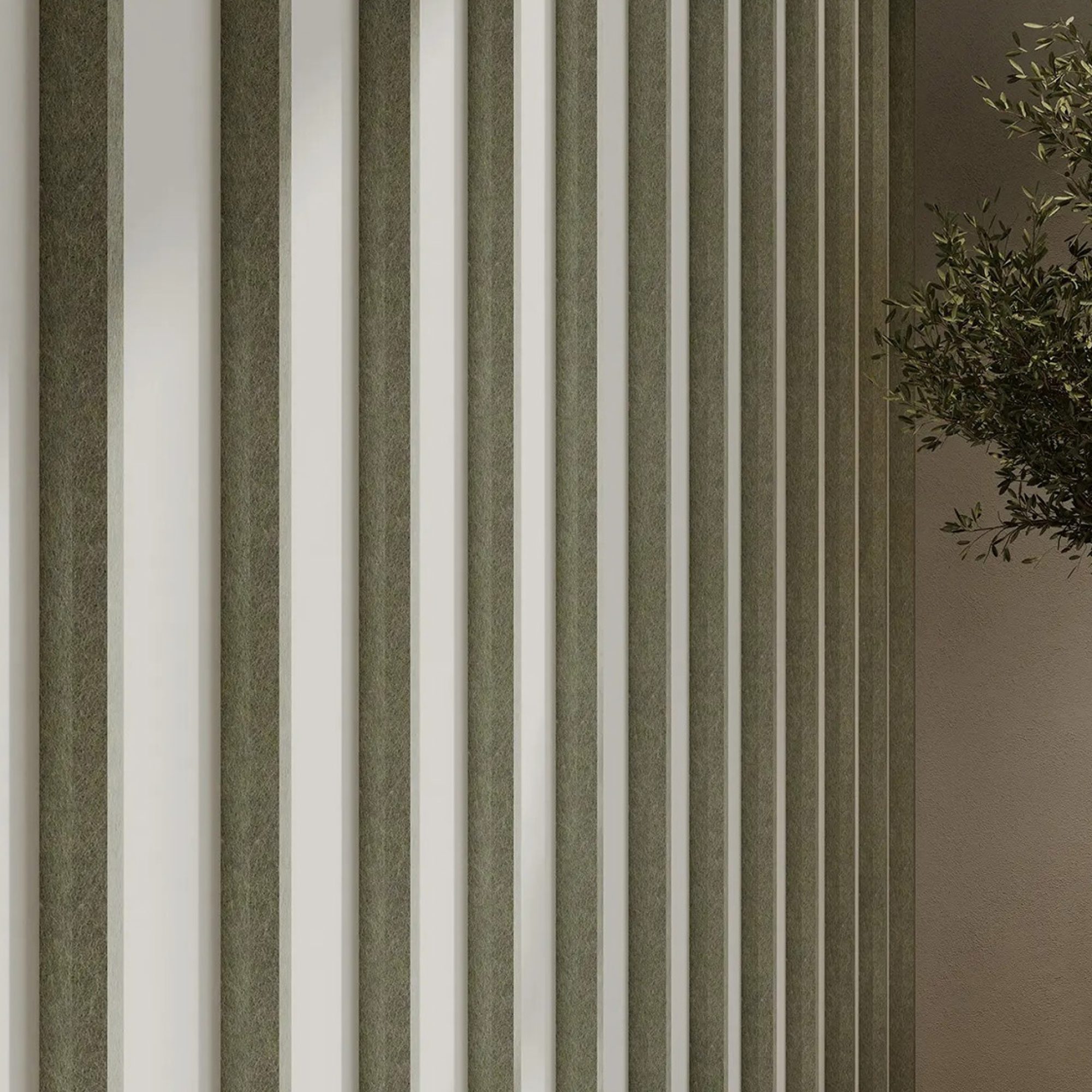

Seam Wall Panels bring together sophisticated design and exceptional acoustic performance to transform spaces into serene, architectural statements. Available in two distinctive profiles—Block with its crisp, linear definition and Igloo with its softer, curved edges—Seam adds depth and verticality, making interiors feel taller and more structured.

With the option to select single- or dual-color configurations, Seam Wall Panels allow endless customization, seamlessly integrating into your design vision. Whether you’re aiming for a bold statement or subtle elegance, Seam delivers the flexibility to create truly inspired and unique spaces.

Technical Drawings

Block
Igloo

FilaSorbâ„¢ Colourways

Peppercorn

PE22

Currant

CU59

Carrot

CA08

Peach

PE19

Flamingo

FL61

Valentine (NEW)

VA70

Turmeric

TU60

Wheat (NEW)

WH68

Kale

KA12

Oregano

OR18

Sencha

SE58

Celery

CE65

Eucalyptus (NEW)

EU71

Wasabi

WA29

Pistachio

PI25

Midnight

MI16

Flint

FL64

Granite

GR62

Denim

DE09

Iris

IR10

Azur

AZ05

Marine

MA15

Periwinkle

PE23

Sea Salt

SE57

Shiraz

SH63

Piano Black

PI24

Charcoal

CH01

Slate

SL27

Light Grey

GR02

Metal

ME03

Platinum

PL04

Walnut

WA56

Umber

UM54

Amethyst (NEW)

AM69

Stonewash (NEW)

ST72

Quartz

QU67

Milkyway

MI74

Almond

AL55

Ivory

IV11

Pearl

PE21

White

WH12

FilaSorb 12 & 24

Peppercorn

PE22

Currant

CU59

Carrot

CA08

Peach

PE19

Flamingo

FL61

Valentine (NEW)

VA70

Turmeric

TU60

Wheat (NEW)

WH68

Kale

KA12

Oregano

OR18

Sencha

SE58

Celery

CE65

Eucalyptus (NEW)

EU71

Wasabi

WA29

Pistachio

PI25

Midnight

MI16

Flint

FL64

Granite

GR62

Denim

DE09

Iris

IR10

Azur

AZ05

Marine

MA15

Periwinkle

PE23

Sea Salt

SE57

Shiraz

SH63

Piano Black

PI24

Charcoal

CH01

Slate

SL27

Light Grey

GR02

Metal

ME03

Platinum

PL04

Walnut

WA56

Umber

UM54

Amethyst (NEW)

AM69

Stonewash (NEW)

ST72

Quartz

QU67

Milkyway

MI74

Almond

AL55

Ivory

IV11

Pearl

PE21

White

WH12

FilaSorb 12 & 24

Peppercorn

PE22

Currant

CU59

Carrot

CA08

Peach

PE19

Flamingo

FL61

Valentine (NEW)

VA70

Turmeric

TU60

Wheat (NEW)

WH68

Kale

KA12

Oregano

OR18

Sencha

SE58

Celery

CE65

Eucalyptus (NEW)

EU71

Wasabi

WA29

Pistachio

PI25

Midnight

MI16

Flint

FL64

Granite

GR62

Denim

DE09

Iris

IR10

Azur

AZ05

Marine

MA15

Periwinkle

PE23

Sea Salt

SE57

Shiraz

SH63

Piano Black

PI24

Charcoal

CH01

Slate

SL27

Light Grey

GR02

Metal

ME03

Platinum

PL04

Walnut

WA56

Umber

UM54

Amethyst (NEW)

AM69

Stonewash (NEW)

ST72

Quartz

QU67

Milkyway

MI74

Almond

AL55

Ivory

IV11

Pearl

PE21

White

WH12

WoodBeQuietâ„¢ Prints

Lyed Larch

WQ30

Knotty Spruce

WQ29

Shadow Oak

WQ28

Espresso Oak

WQ27

Scorched Timber

WQ26

Mocha Legno

WQ25

Mountain Lodge

WQ24

Petrified Ash

WQ23

Woodland Fog

WQ22

Driftwood

WQ21

Black Walnut

WQ20

Fumed Oak

WQ19

Teak

WQ18

European Larch

WQ17

Natural Oak

WQ16

Nordic Plank

WQ15

Weathered Slate

WQ14

White Oak

WQ13

Baltic Birch

WQ12

Antique Chest

WQ11

Board Walk

WQ10

Charred Larch

WQ09

French Bobbin

WQ08

White Elm

WQ07

Loft

WQ06

Barn Door

WQ05

Log Cabin

WQ04

Wine Barrel

WQ03

Boat Shed

WQ02

Picket Fence

WQ01

Product Details

NRC

0.45 - 0.64 NRC | Class D-E

Noise Reduction Coefficient (NRC) rating dependent on sound frequencies and mounting method as follows;



12mm FilaSorbâ„¢
no air gap - 0.45 NRC | 0.25 (H) αw no air gap, Class E
12mm air gap - 0.54 NRC | 0.35 (MH) αw 12mm air gap, Class D
20mm air gap - 0.64 NRC | 0.40 (MH) αw 20mm air gap, Class D
*results are for materials only

24mm FilaSorbâ„¢
no air gap - 0.60 NRC | 0.50 (LH) αw no air gap, Class D
*results are for materials only

Specification

ApplicationWall
Composition100% polyester
MaterialFilaSorbâ„¢ polyester felt
Recycled Content60% min. rPET
NRC Rating0.45 - 0.64 NRC | Class D-E
Material Thickness12mm, 24mm +/- 10%
Width305 – 1220mm
Height610 – 2800mm
Depth50 & 55mm
Fire Test Method EN 13501-1: 2019
Fire Classification B-s1, d0

Sustainability

Custom

Acoufelt design engineers stand ready to serve on your design team, marrying their deep understanding of the art and science of sound management to your vision with custom cutting, coloring, printing, bevelling, shaping and technical advice to soundscape your designs.

How to specify

Icon Surface
1. Choose your surfaces.

Soundscape your space by placing your sound absorptive products where they have the greatest impact, factoring in high traffic and noisy areas. Hint: install sound absorbing products on adjacent surfaces for better reverberation results.

Icon Color
2. Select a color, pattern or cut.

Choose from our broad palette and design gallery, or use our custom capabilities to design your own.

Icon Measure
3. Measure your installation space.

Take the dimensions and get in touch so we can help you soundscape your space efficiently.
